PEAK AC 100
AIR COMPRESSOR OIL



PRODUCT DESCRIPTION

PEAK AC 100 is a premium compressor oil formulated to deliver outstanding lubrication, performance, and protection. It is designed for high-pressure reciprocating (piston) compressors operating at air discharge temperatures of up to 220ºC.

PEAK AC 100 is also suitable for rotary screw air compressors, whether oil-flooded or oil-injected, including both single-stage and two-stage units. These compressors can operate at pressures of up to 20 bar and air discharge temperatures of up to 100ºC.

BENEFITS

• Excellent chemical and thermal stability ensuring good service life
• Outstanding wear protection
• Reduced foaming and exceptional cleanliness and filtering ability
• Anti-clogging property which extends the life of the separating filter elements

SPECIFICATIONS AND PERFORMANCE LEVEL

✔ ISO 6743-3A-L DAA

✔ DIN 51506 (VBL)

CHARACTERISTICS

Test	Typical Value
Density 15°C g/cm³	0.871
Viscosity @ 40°C cSt	102.5
Viscosity @ 100°C cSt	11.8
Viscosity Index	104
Flash Point °C	>210
Colour	L0.5

PRODUCT SIZE

Part Number	Size	Carton Qty	Pallet Qty

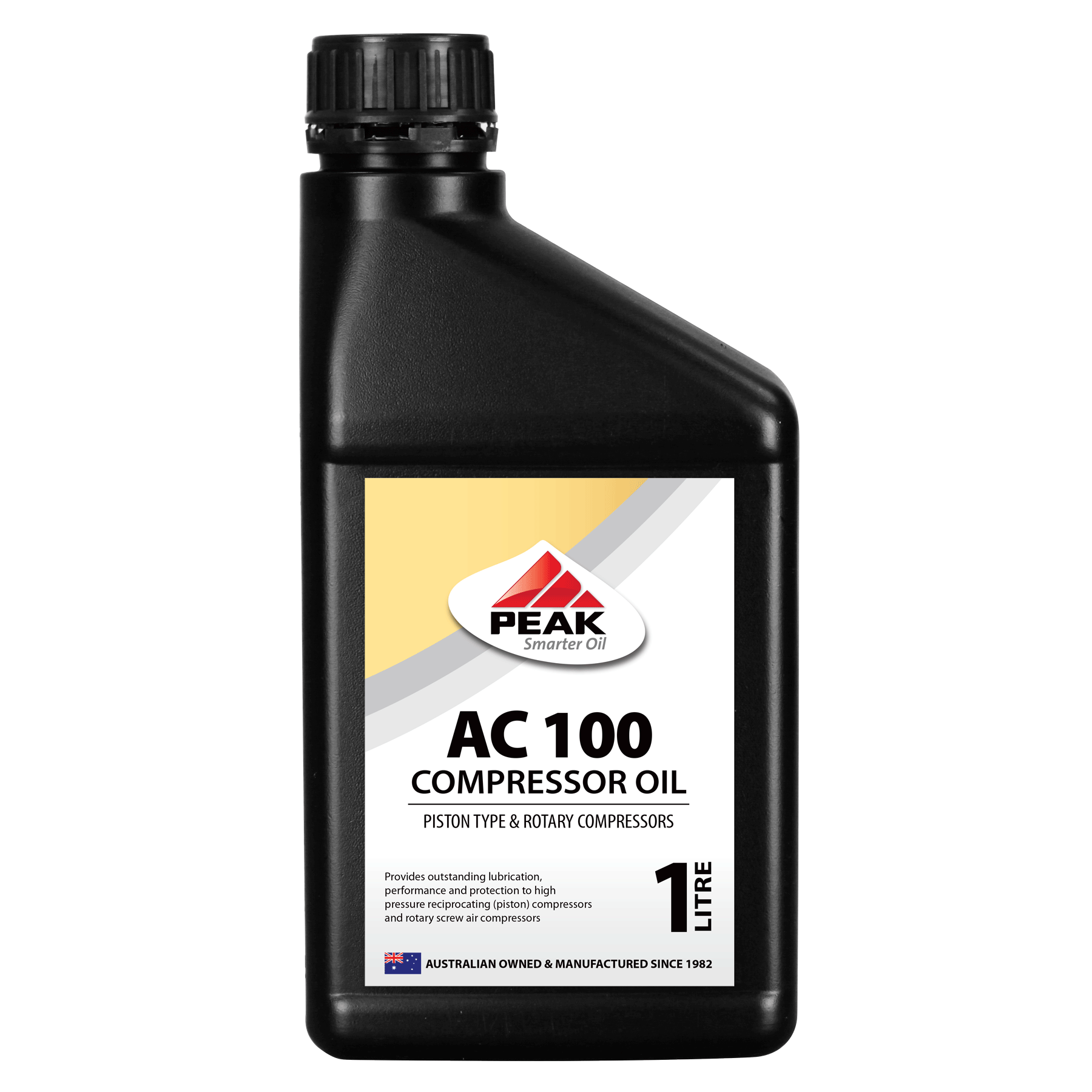

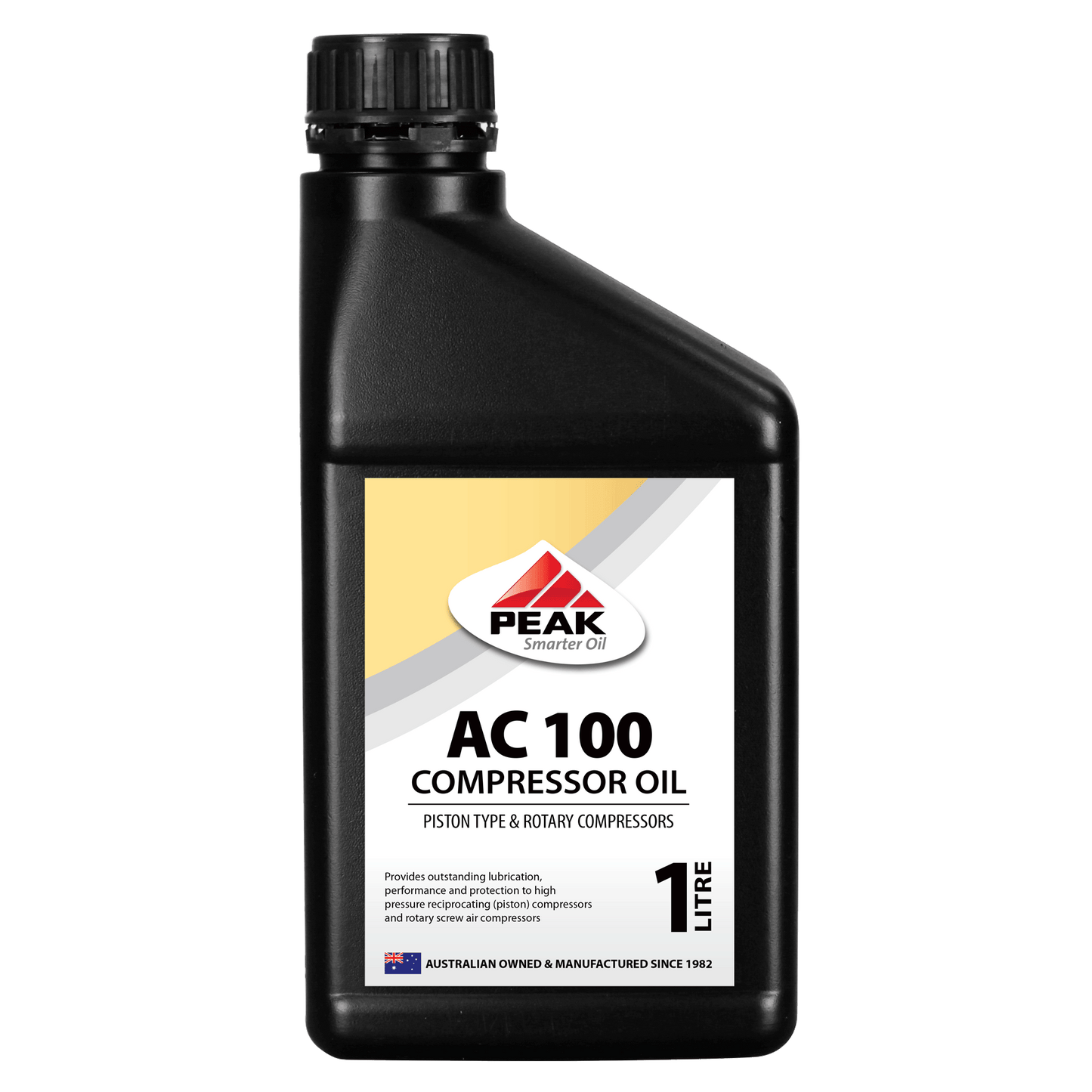

PKIAM100001	1 Litre	6	780

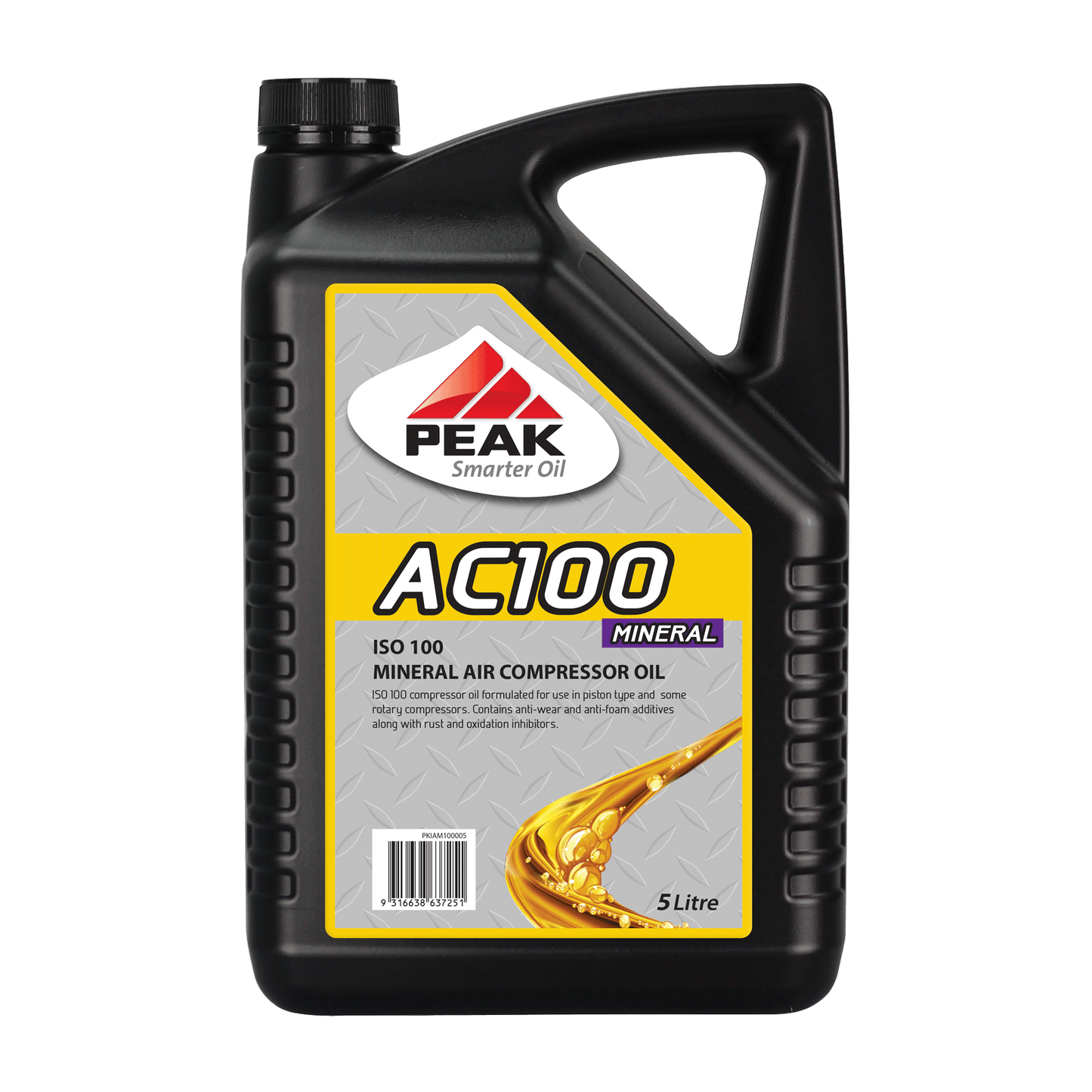

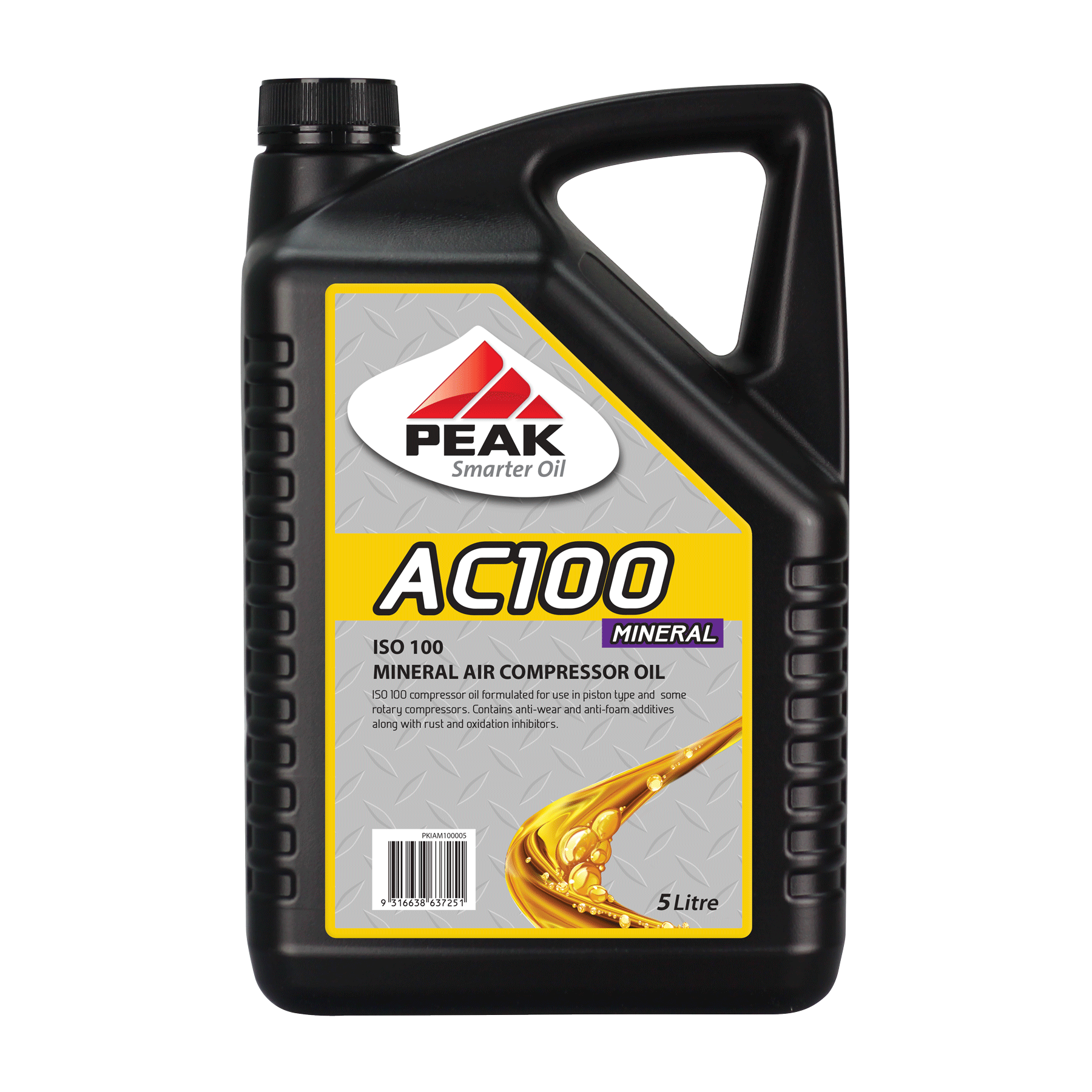

PKIAM100005	5 Litre	4	192

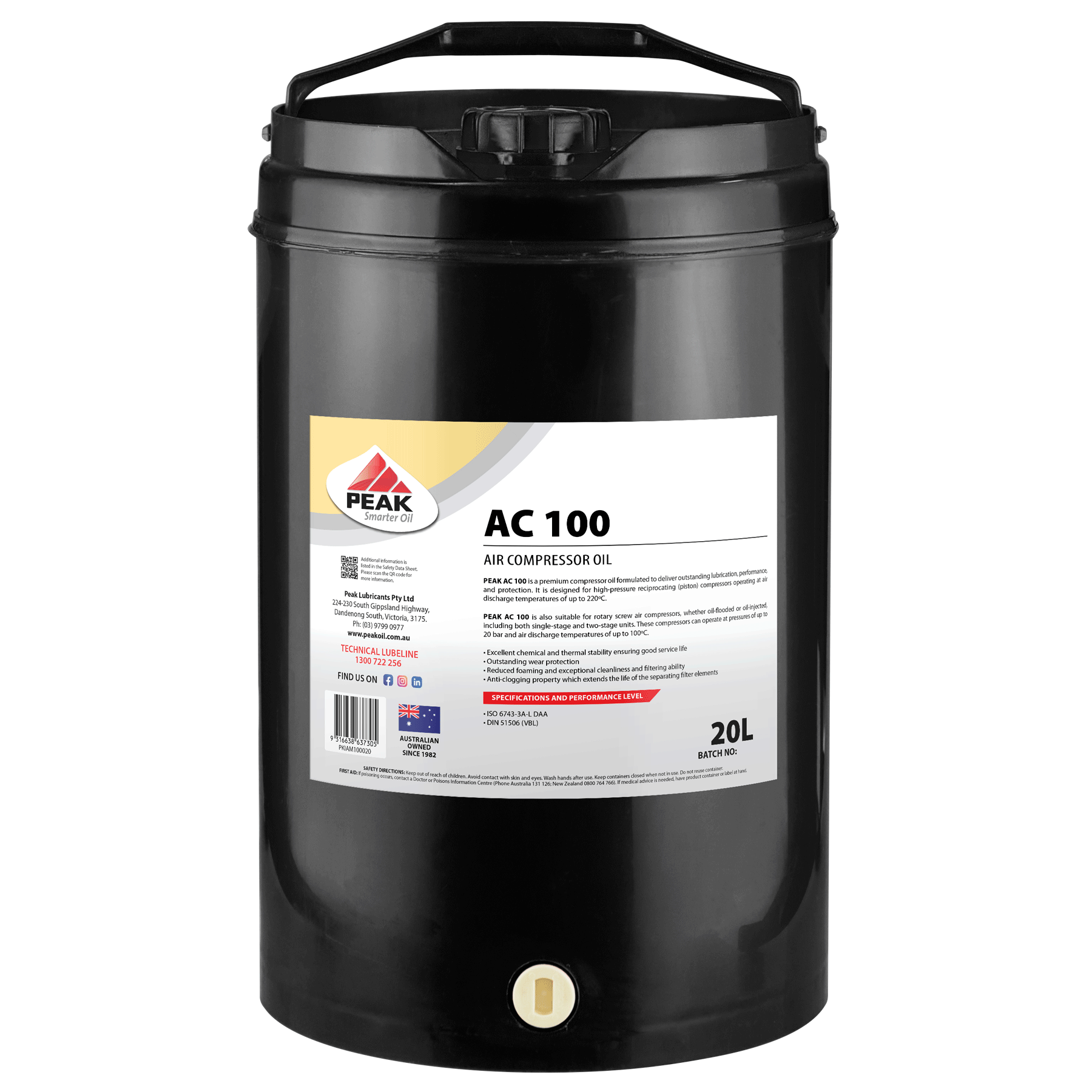

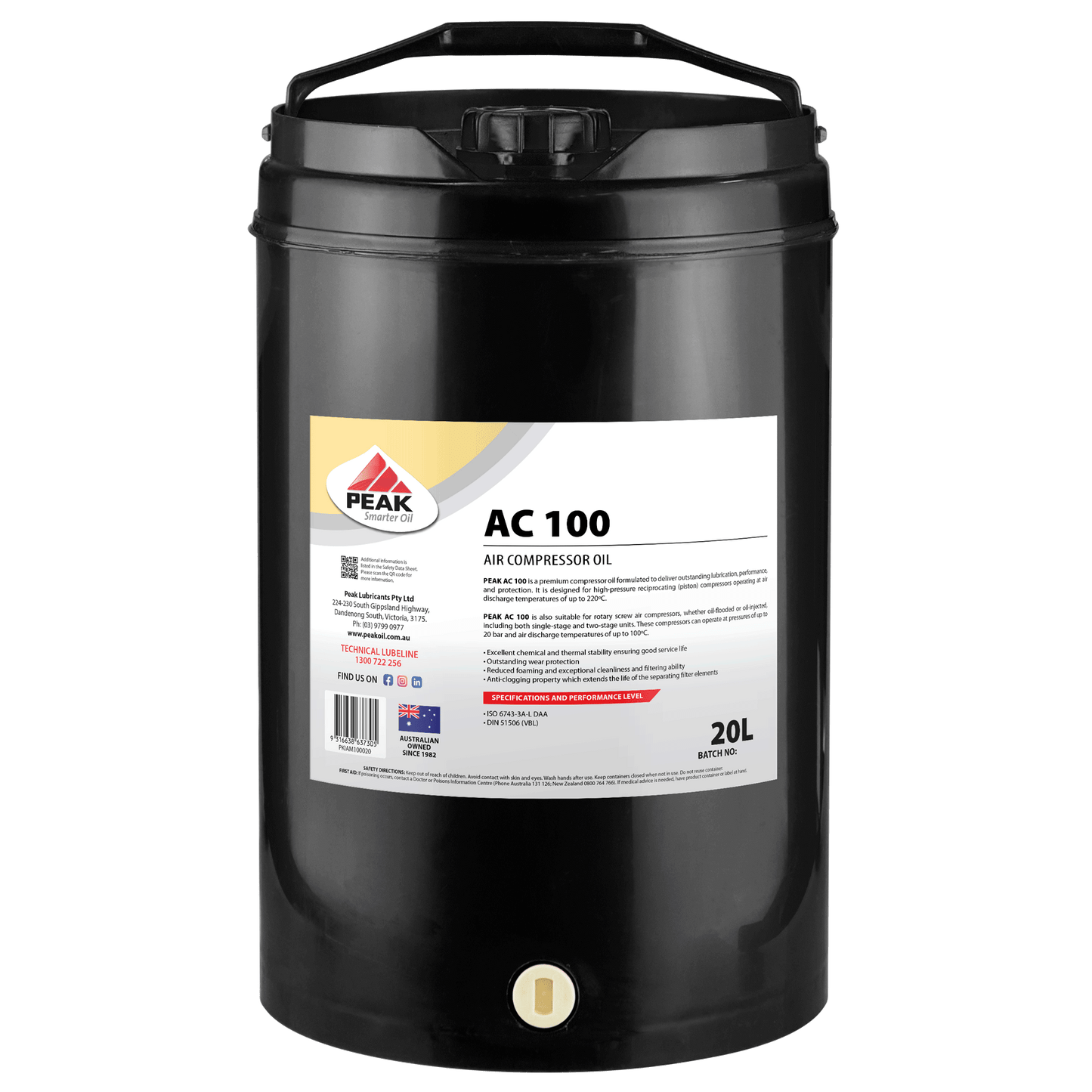

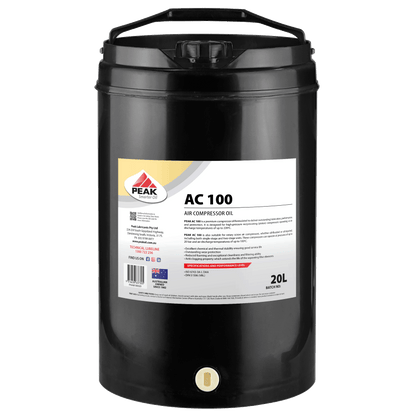

PKIAM100020	20 Litre		32

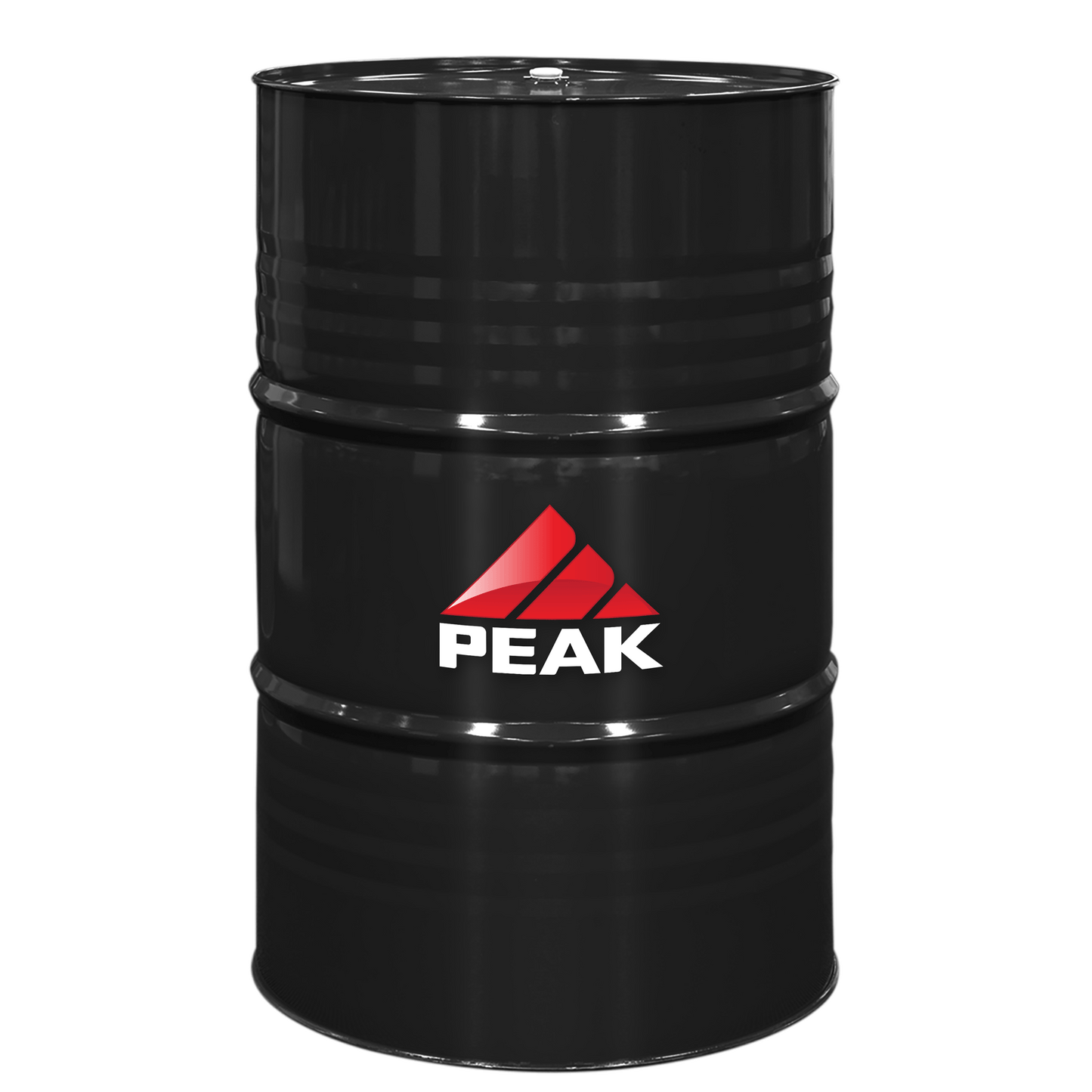

PKIAM100205	205 Litre		4
