PEAK HEAT TRANSFER 46
HEAT TRANSFER FLUID
PRODUCT DESCRIPTION
PEAK HEAT TRANSFER 46 is based on severely hydrocracked base oils chosen for their ability to resist thermal cracking and chemical oxidation at high temperatures, providing superior performance in heat transfer systems. It provides extended oil life, efficient fluid heating and good pump circulation is ensured.
PEAK HEAT TRANSFER 46 is used in enclosed circulated heat transfer systems. It can be used in high temperature continuous heat transfer equipment with the following application limits:
- Closed System: Maximum bulk temperature = 320°C
- Open System: Maximum bulk temperature = 180°C
A well-designed heat transfer system along with oil condition monitoring can extend the life of the oil by many years.
BENEFITS
- Low viscosity delivers excellent fluidity and heat transfer over a wide temperature range
- Good thermal and oxidation stability characteristics permit higher operating temperatures and provide long fluid life
- Being non-corrosive with a relatively high solvency helps reduce deposit formation keeping internal surfaces cleaner for longer
- Low vapour pressure minimises the formation of volatile decomposition products
SPECIFICATIONS AND PERFORMANCE LEVEL
| ✔ DIN 51522 |
CHARACTERISTICS
| Test | Typical Value |
|---|---|
| Density 15°C g/cm³ | 0.866 |
| Viscosity @ 40°C cSt | 44.3 |
| Viscosity @ 100°C cSt | 6.8 |
| Viscosity Index | 108 |
| Flash Point °C | >210 |
PRODUCT SIZE
| Part Number | Size | Carton Qty | Pallet Qty |
|---|---|---|---|

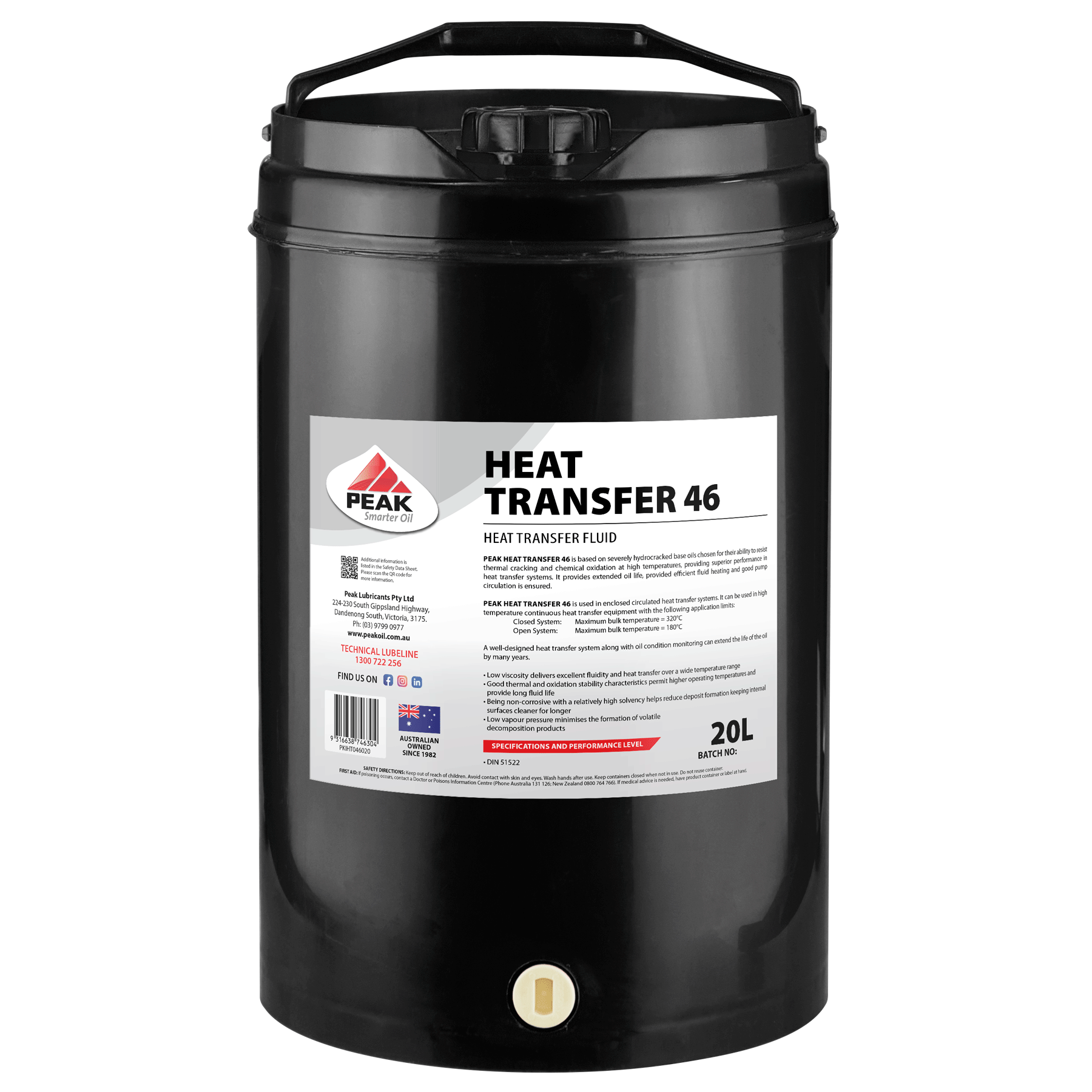

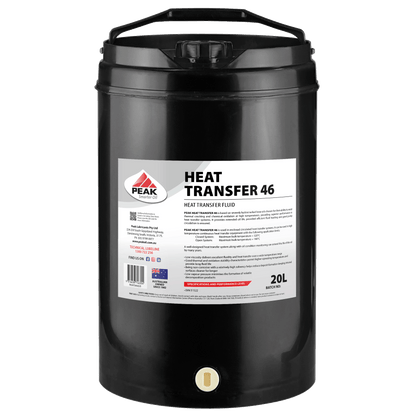

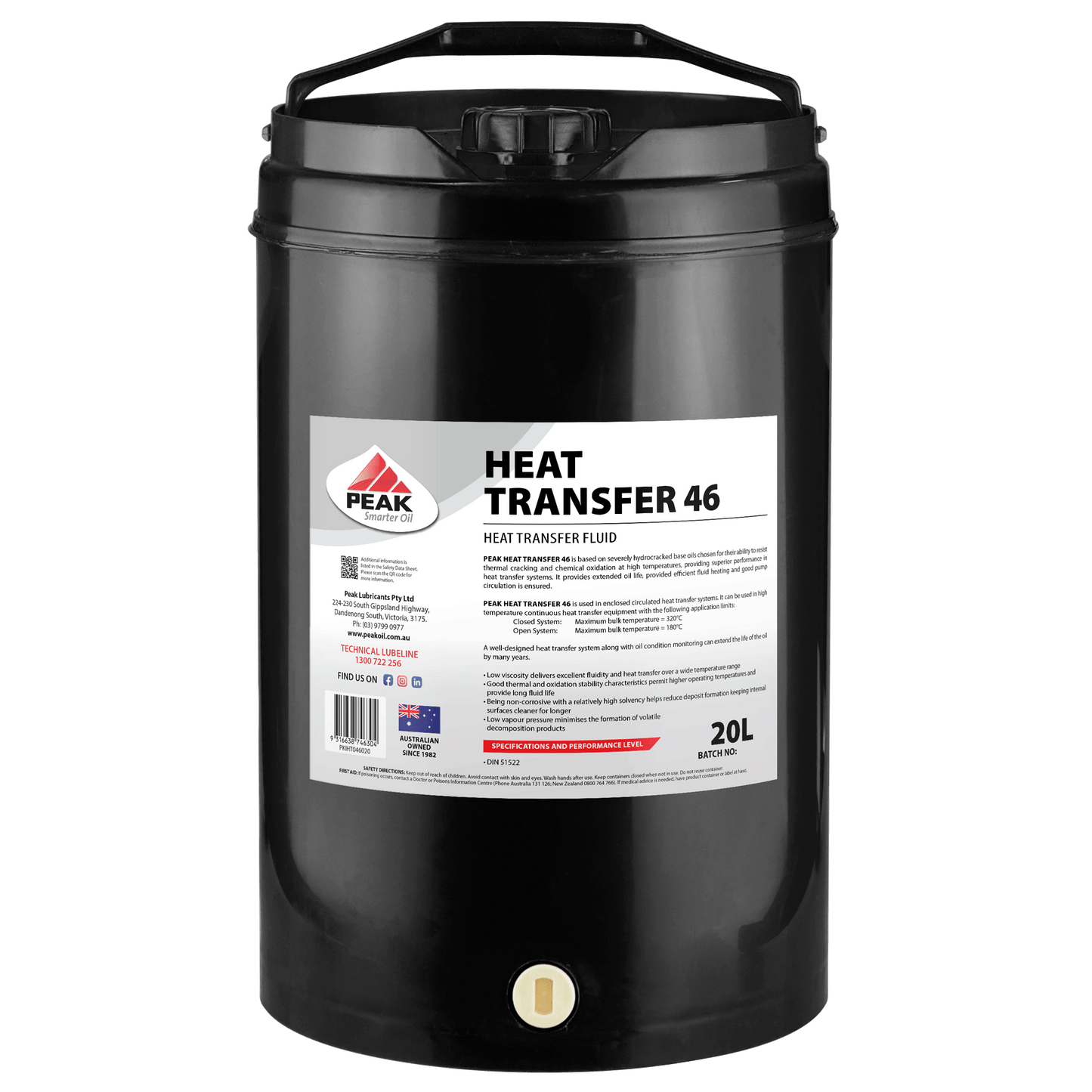

| PKIHT046020 | 20 Litre | 32 | |
| PKIHT046205 | 205 Litre | 4 |
